Escape 30 Solar Panel |
|
|
QUICK FEATURES
The Escape 30 Solar Briefcase features a sturdy body that easily folds into a sleek and portable briefcase, making transportation safe and easy.
Solar Power
Collect 30 watts of power from the sun to recharge your power pack
Easy to Use

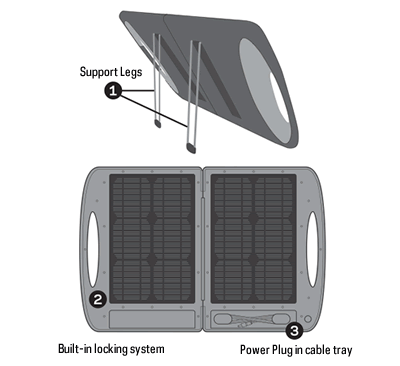

Pop-out leg stands for optimal positioning and convenient set-up.
For use anywhere
Ergonomic rubberized handle for greater comfort and grip. Store-away cable for simple organization.
WHAT CAN THE ESCAPE 30 SOLAR PANEL BRIEFCASE CHARGE?
The solar panel does not hold a charge it produces power when it is exposed to sunlight. You can store the power it produces in a portable recharger. The Escape 30 Briefcase can be used to power any Goal Zero recharger. |
WHAT GOAL ZERO PRODUCTS WORK BEST WITH THE ESCAPE 30 BRIEFCASE?
The Escape 30 Briefcase can be used to power any Goal Zero recharger. For the amount of Watts it gives, it will be most effective with the Escape 150, Yeti 150*, Yeti 400*, or Sherpa 50*. (*4,7mm to 8.0mm adapter needed to connect to this product) |
DOES THE ESCAPE 30 BRIEFCASE GIVE A FULL 30 WATTS?
It delivers up to 30 Watts of power, but the angle of the panels and the cloud coverage can impact its performance. Avoid the shade. It will not work indoors. |
|
HOW DO I USE THE ESCAPE 30 BRIEFCASE?
1: Position and angle panel towards the sun
2: Plug the solar panel into recharger/battery pack (sold separately)
USAGE
| Charges from the following: |
Approx. Charge Time: |
| Escape 150 Power Pack |
11-22 hours |
| Yeti 150 Solar Generator |
11-22 hours |
| Yeti 400 Solar Generator |
26-52 hours |
| INPUTS |
| Rated wattage |
30W |
| Cell Type |
Mono crystalline |
| Open-circuit Voltage |
18-20V |
| Converting Eff. |
17-18% |
| OUTPUTS |
| Solar Port |
12V Charging port (4.7 mm)
14-16V, 2.0A max (30W), not regulated |
| GENERAL |
| Weight |
12.2 lbs (5.4 kg) |
| Dimensions |
16 x 22 x 1.75 in (53.3 x 5 x 40.6 cm) |
| Warranty |
12 Months |
| Certifications |
FCC and CE |
| Optimal Operating Temp. |
32-104 F (0-40 C) |
|
|
|
