| Guardian 12V with Boulder 15 Solar Recharging Kit |
|
|
|
Keep 12V batteries charged and ready to go for when you need them most. The Guardian 12V Charge Controller plus Goal Zero Solar Panel is the perfect system to protect your batteries when they're not in use.
Maintain 12V Batteries
Trickle, recharge and maintain 12V batteries
Easy to Use
Small and easy to use
Plug it and Forget
Pair with a Goal Zero Solar Panel for a self-sustaining charging cycle
WHAT DOES GUARDIAN 12V POWER?
Use to trickle charge any 12V battery. |
 |
Motorcycles
Snowmobiles
Tractors
Watercraft
Trucks |
RVs
Lawnmowers
Cars
...and more |

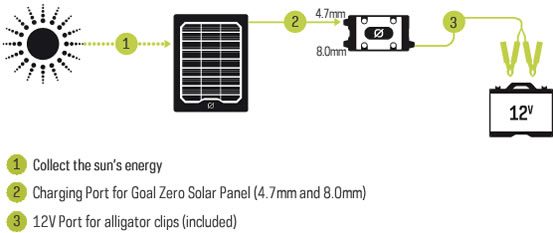

HOW DO I USE THE GUARDIAN 12V?
Connect the included alligator cable to your 12V battery to the Guardian 12V Charge Controller. Connect the Guardian 12V Charge Controller to a solar panel and place in the sun. |
 |
USAGE
| INPUTS |
| Charging port (8.0mm) |
15-20V, 0-6A (90W max) |
| Charging port (4.7mm) |
15-20V, 0-6A (90W max) |
| OUTPUTS |
| 12V Port (6.0mm), for Alligator Clips (90W max) |
15-20V, 0-6A |
| INTERNAL |
| Charge Controller |
Built-in PWM Lead-Acid
Supports up to 150W of solar panels |
| LED's |
Left LED
Indicates solar panel is connected |
| |
Right LED
Indicates battery connection and will blink when a battery and solar panel for (or other power supply) are connected. |
| GENERAL |
| Weight |
0.2 lbs (0.09 kg) |
| Weight with Alligator Clips |
0.4 lbs (0.18 kg) |
| Dimensions |
5 x 2.5 x 1 in (12.7 x 6.4 x 2.5 cm) |
| Warranty |
12 Months |
| Certifications |
FCC and CE |
| Optimal Operating Temp. |
32-104 F (0-40 C) |
|
|
|
